Product Dimensions 9.5"h x 30"w x 12"d

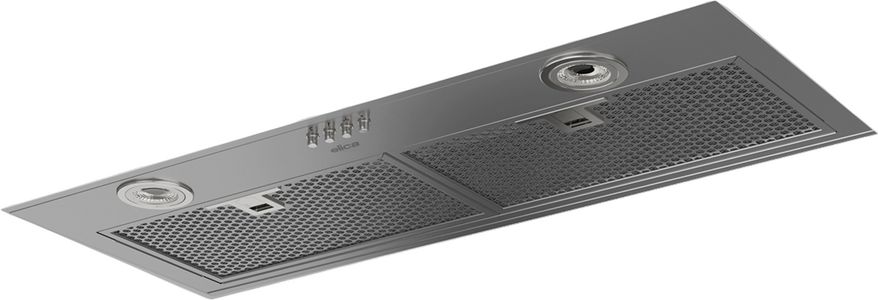

Asti 30" is designed for discreet mounting inside cabinetry, ideal for kitchens where space is limited.Read More
Fits perfectly into 12" deep cabinetry and is ideal for kitchens where space is limited or the range hood needs to be out of sight. Asti comes equipped with a powerful 400 CFM blower that can handle most cooking needs. Convenient Mechanical Push Button Controls operate the 3-speed blower and LED lighting, while dishwasher-safe anodized aluminum mesh filters covered by a stainless steel protective layer, offer easy maintenance. Asti is designed for standard ducted or recirculating installation. Now, featuring a snap on easy installation mechanism and exhaust outlets located at both the top and rear for enhanced functionality.
Illuminate your culinary journey with LED brilliance. An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
General Specs | |
| Width (in.) | 30 |
| Height (in.) | 9.5 |
| Duct Size (in.) | 6" Round |
| Depth (in.) | 12 |
| Color | Stainless Steel |
| Series | Comfort |
| Color/Finish Name | Stainless Steel |
| Manufacturer Warranty | 2 Year Parts & Labor. Additional 1 Year Parts & Labor after product registration |
| Range Hood Type | Insert |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Product Weight (lbs.) | 24.25 |
| Smart Compatible | No |
| Maximum CFM | 400 |
| Bulb Type | LED |
| Grease Filter Type | Aluminum Mesh |
| Filter Indicator Light | No |
| Sones Rating | 0.3 - 5 |
| Fan Speed Options | 3 |
| Height Above Cooktop | 24 - 36 (Electric), 30 - 36 (Gas) |
| Ventilation Direction | Horizontal |
| Shipping Depth (in.) | 15.31 |
| Shipping Width (in.) | 32.95 |
| Shipping Height (in.) | 16.77 |
| Voltage | 120 |
| Amp | 2.2 |
| Frequency | 60 |
| Range Hood Features | Charcoal Filter, Ductless Capable, Light, Removable Grease Filter |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
Vent Orientation | |
| Vent Location | Top and Rear |
